5v 1a usb charger
  • 5v 1a usb charger
  • 5v usb wall charger
  • 5v 500ma charger

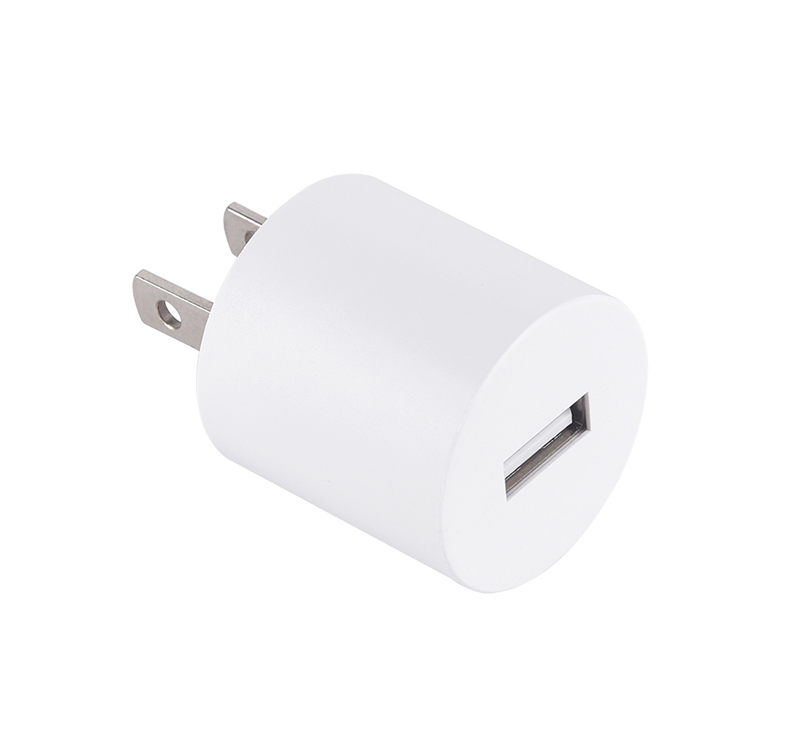

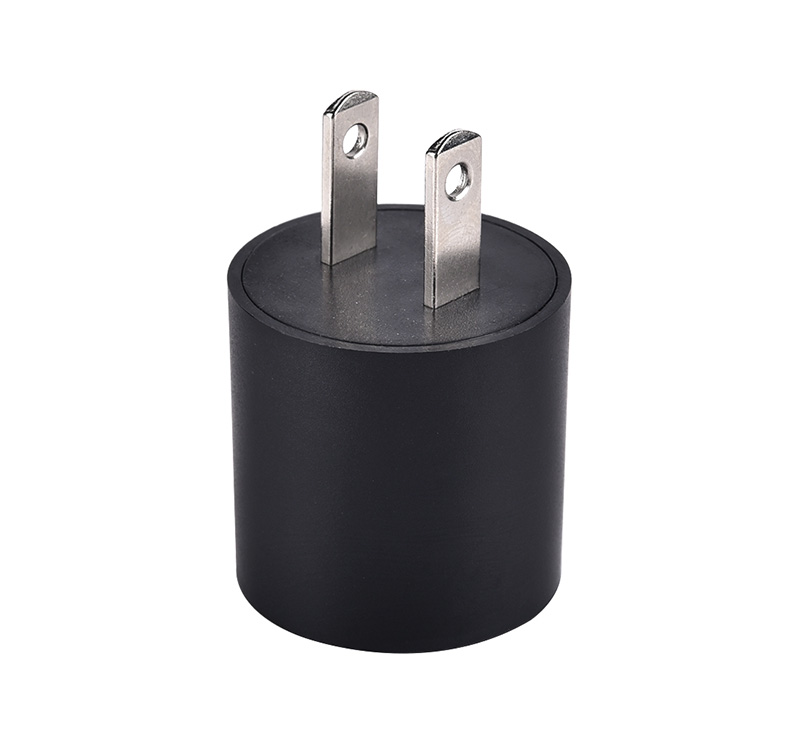

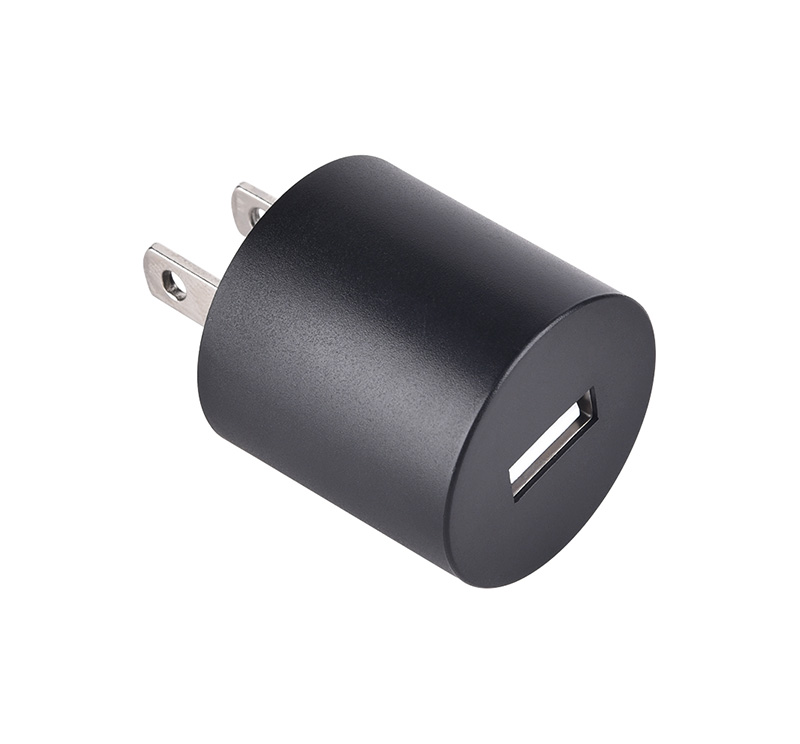

5v 500mA 1a usb charger

    ■   Premium Performance: Singal-USB output with total current 5V/1A and input with 86V-264V .

    ■   Safety assurance: TQ charger has protection system against over charging, over / short currents, and over heating. The charger will automatically stop charging when power is full, which can maximumly protect your device.

    ■   Lightweight: Home charger adapter allows charging at home or in the office via USB cable connection. Simply plug in the USB cable, and plug the adapter into the wall. Compact, lightweight, portable, stylish, easy to store.

    ■   Multipurpose: Pure white / black color match all usb cable cord or match your phones. You can share them with your lover, family or friends.

      What You Get: 3 x Pure White port usb wall charger. This product is sold exclusively by TQ, We offer 36-month Breakage Warranty for all charger in case of defective product.

      Have UL FC DOE CE TUV CB RCM ROHS approved .


  • Description
body size31*31*31mm
Input Rated Voltage86Vac~264Vac
Input Frequency Range47Hz~63Hz
Input Current0.3A(Max)
Input Inrush Current50A
Efficiency73.6% ,level VI
DC Output Voltage5v±5%
DC Output Rated Current1000mA
DC Output Power5w
Ripple and Noise≤80Mv
Turn On Delay Time≤3S (AC:110V and full load)
StandardUL/CUL FCC CE CB
USB cable length1.2m 2464 type ( optional )
DC connectorTYPE C ,Micro 5pin
Dielectric Withstand VoltageA IEC320 3 pin input---output(FG)3K Vac 1 m
ProtectionOVP ,OCP,SCP,OTP
Leakage Current≤5Ma
Operating Temperature Range0℃----+55℃
Storage Temperature-20℃----+85℃
