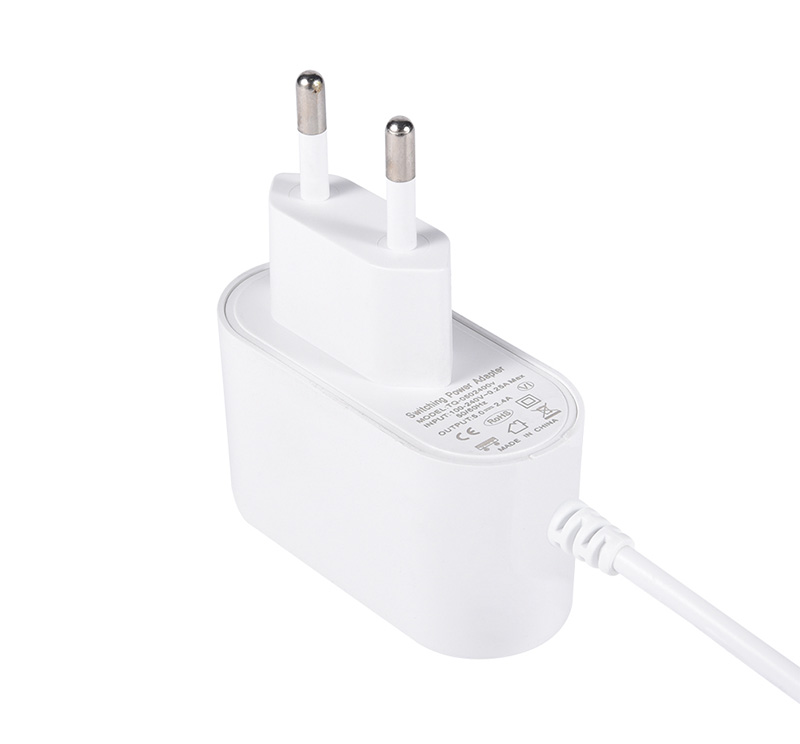

9V 1A Power Adapter
short / Over current protection, over voltage protection, over temperature protection.
Inquire Now
None
- Description
| body size | 61.5*26.8*34.3mm | ||
| Input Rated Voltage | 86Vac～264Vac | ||
| Input Frequency Range | 47Hz～63Hz | ||
| Input Current | 0.3A(Max) | ||
| Input Inrush Current | 50A | ||
| Efficiency | 78.8%, level VI | ||
| DC Output Voltage | 12v± 5% | ||
| DC Output Rated Current | 500mA | ||
| DC Output Power | 6w | ||
| Ripple and Noise | ≤80Mv | ||
| Turn On Delay Time | ≤3S (AC:110V and full load) | ||
| Standard | UL/CUL FCC SAA C-TICK | ||
| DC cable length | 1.5m 2464 type | ||
| DC connector | 5.5*2.1*12mm striaght type | ||
| Dielectric Withstand Voltage | A IEC320 3 pin input---output(FG)3000Vac 1 m | ||
| Protection | short / Over current protection, over voltage protection, over temperature protection. | ||
| Leakage Current | ≤5Ma | ||
| Operating Temperature Range | 0℃----+55℃ | ||
| Storage Temperature | -20℃----+85℃ | ||
