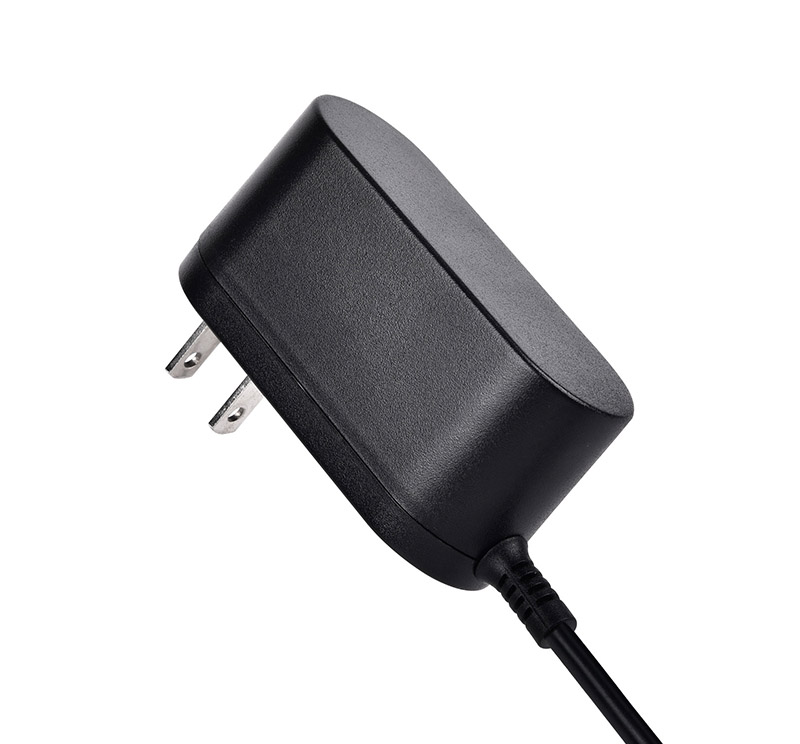

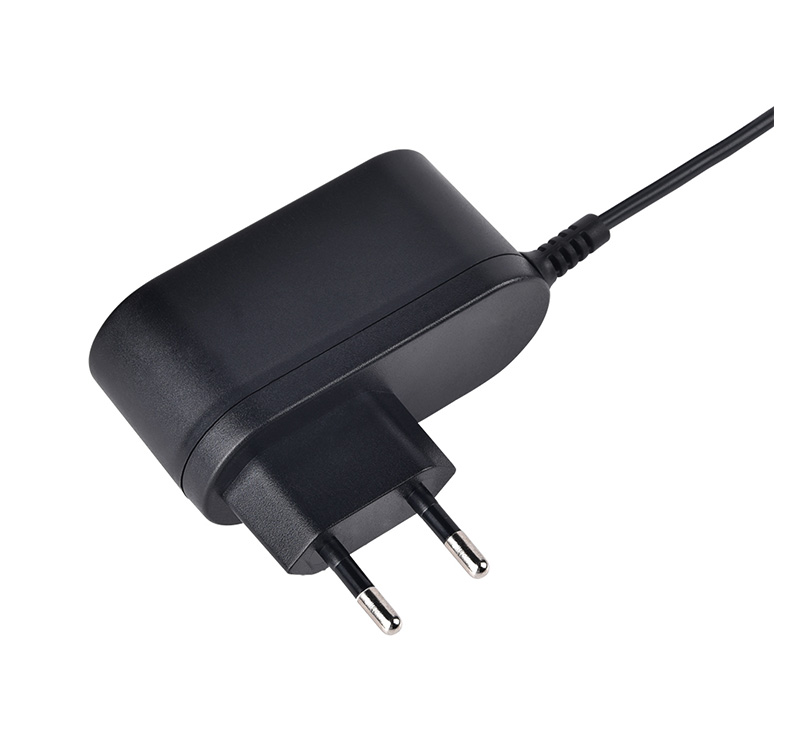

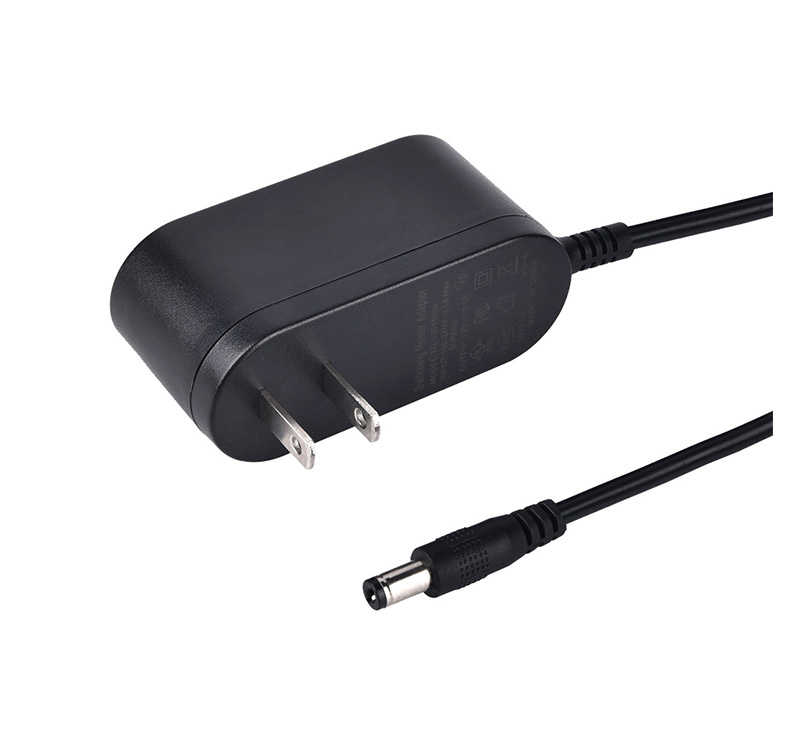

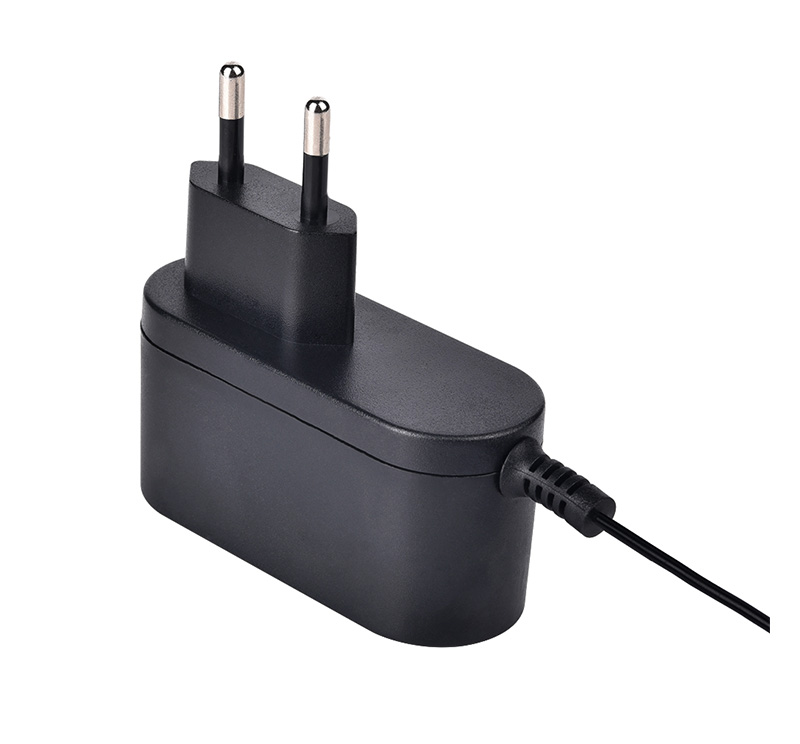

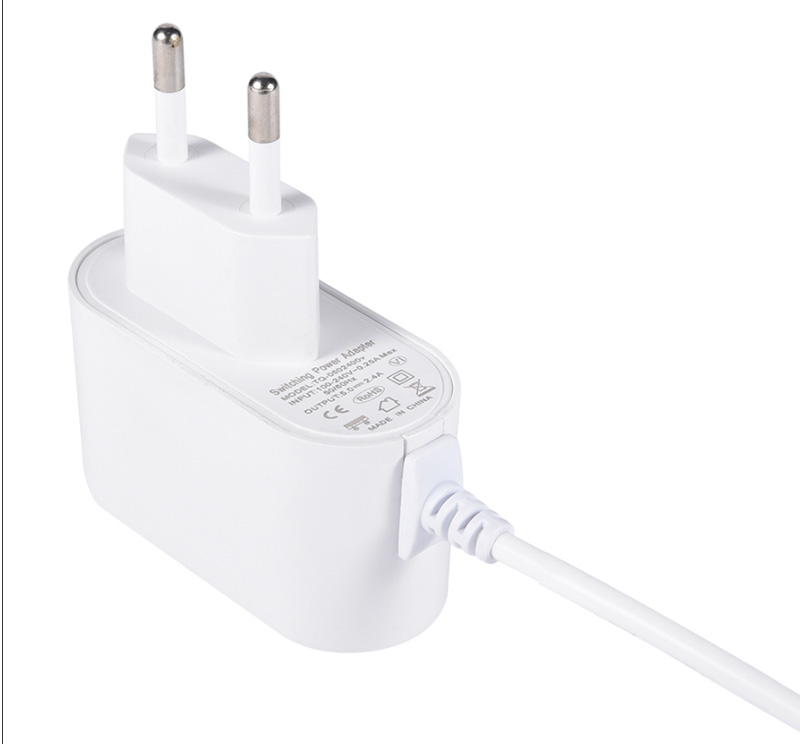

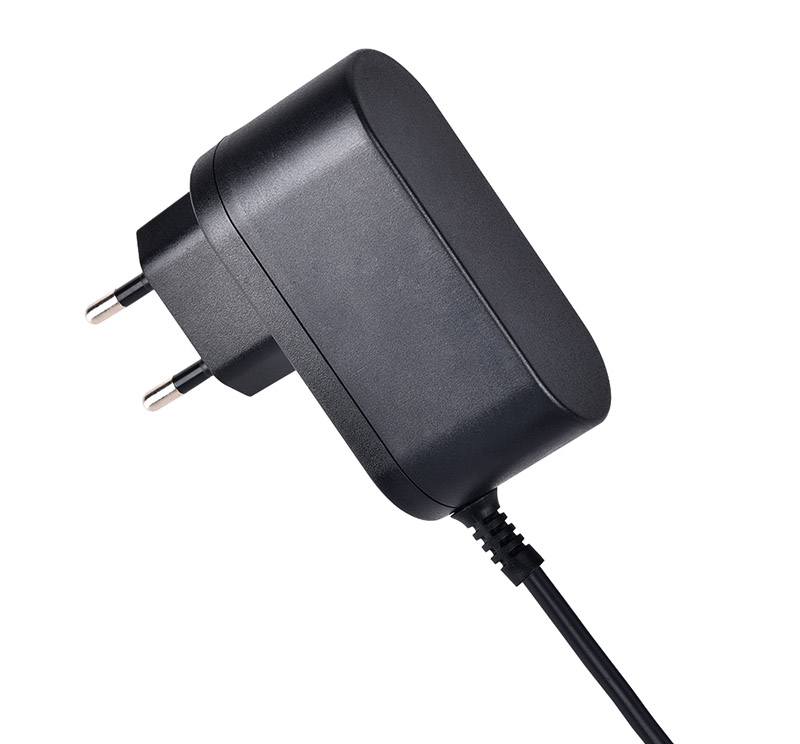

5v 2a power adapter
■ Connector: 2.1/5.5mm Plug ( optional )
■ Input: AC100 ~ 240V, 50/60Hz, 2A max
■ Output: DC5V, 2000mA
■ Dimensions: 61.5 (L) x 26.8 (W)x 34.3 (H) mm
■ UL CE FCC RCM TUV CB Listed , Wire Length: 5 Ft
■ 3 years warranty
- Description
| body size | 61.5*26.8*34.3mm |
| Input Rated Voltage | 86Vac～264Vac |
| Input Frequency Range | 47Hz～63Hz |
| Input Current | 0.3A(Max) |
| Input Inrush Current | 50A |
| Efficiency | 78.8% ,level VI |
| DC Output Voltage | 5v±5% |
| DC Output Rated Current | 2000mA |
| DC Output Power | 10w |
| Ripple and Noise | ≤80Mv |
| Turn On Delay Time | ≤3S (AC:110V and full load) |
| Standard | UL/CUL FCC CE CB |
| USB cable length | 1.2m 2464 type ( optional ) |
| DC connector | TYPE C ,Micro 5pin ,5.5*2.1/2.5*12mm ( optional ) |
| Dielectric Withstand Voltage | A IEC320 3 pin input---output(FG)3K Vac 1 m |
| Protection | OVP ,OCP,SCP,OTP |
| Leakage Current | ≤5Ma |
| Operating Temperature Range | 0℃----+55℃ |
| Storage Temperature | -20℃----+85℃ |
