5v 3a power adapter
  • 5v 3a power adapter
  • 5v 3amp dc power adapter

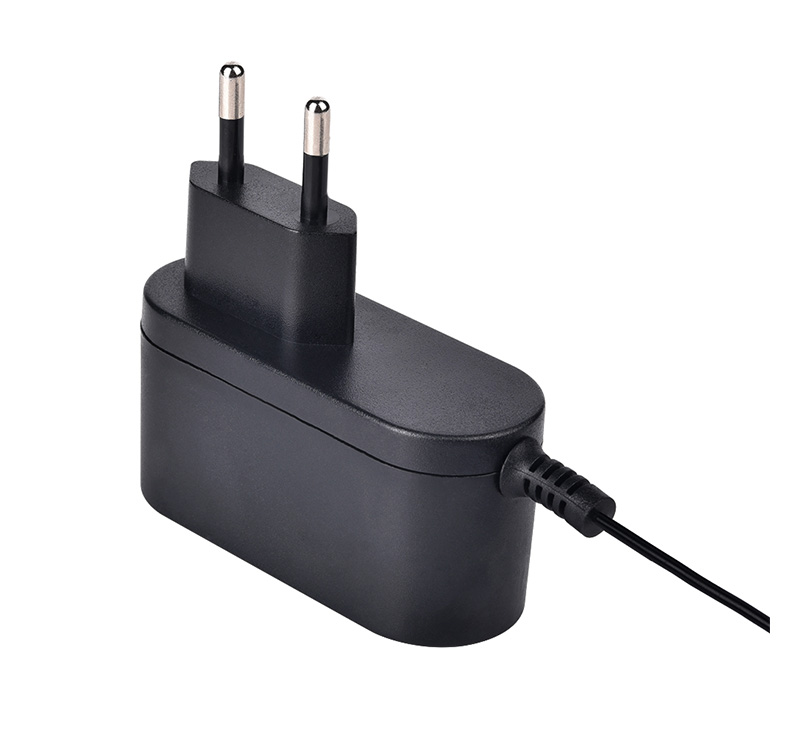

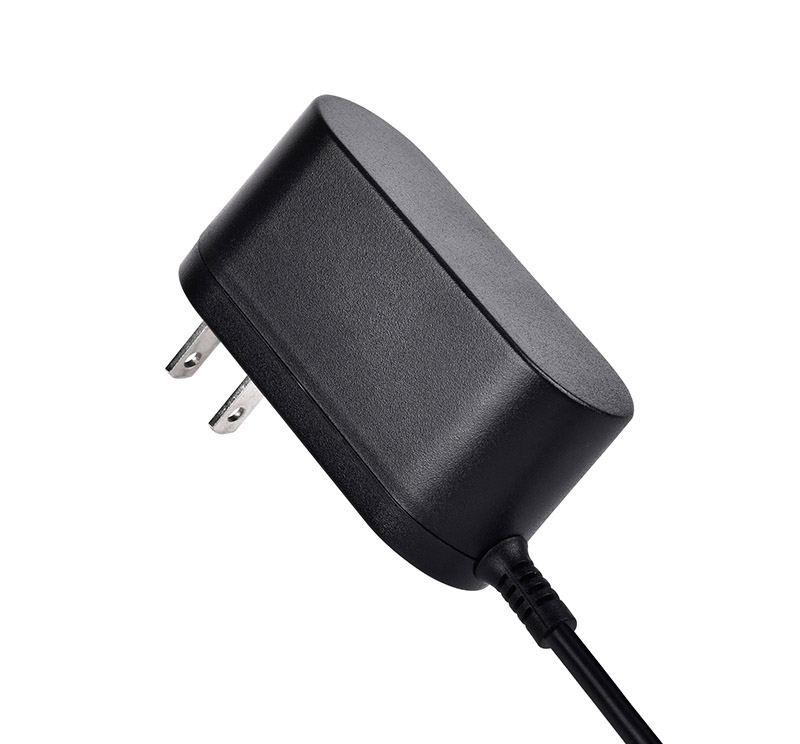

5v 3a power adapter 3amp

    ■   Connector: 2.1/5.5mm Plug ( optional )

    ■   Input: AC100 ~ 240V, 50/60Hz, 2A max

    ■   Output: DC5V, 3000mA

    ■   Dimensions: 74 (L) x 28.5 (W)x 36.6 (H)  mm

    ■   UL CE FCC RCM TUV CB  Listed , Wire Length: 4 Ft

    ■    3 years warranty


Inquire Now None
  • Description
body size74*28.5*36.6mm
Input Rated Voltage86Vac～264Vac
Input Frequency Range47Hz～63Hz
Input Current0.3A(Max)
Input Inrush Current50A
Efficiency81.38% ,level VI
DC Output Voltage5v±5%
DC Output Rated Current3000mA
DC Output Power15w
Ripple and Noise≤80Mv
Turn On Delay Time≤3S (AC:110V and full load)
StandardUL/CUL FCC CE CB
USB cable length1.2m 2464 type ( optional )
DC connectorTYPE C ,Micro 5pin ,5.5*2.1/2.5*12mm ( optional )
Dielectric Withstand VoltageA IEC320 3 pin input---output(FG)3K Vac 1 m
ProtectionOVP ,OCP,SCP,OTP
Leakage Current≤5Ma
Operating Temperature Range0℃----+55℃
Storage Temperature-20℃----+85℃
