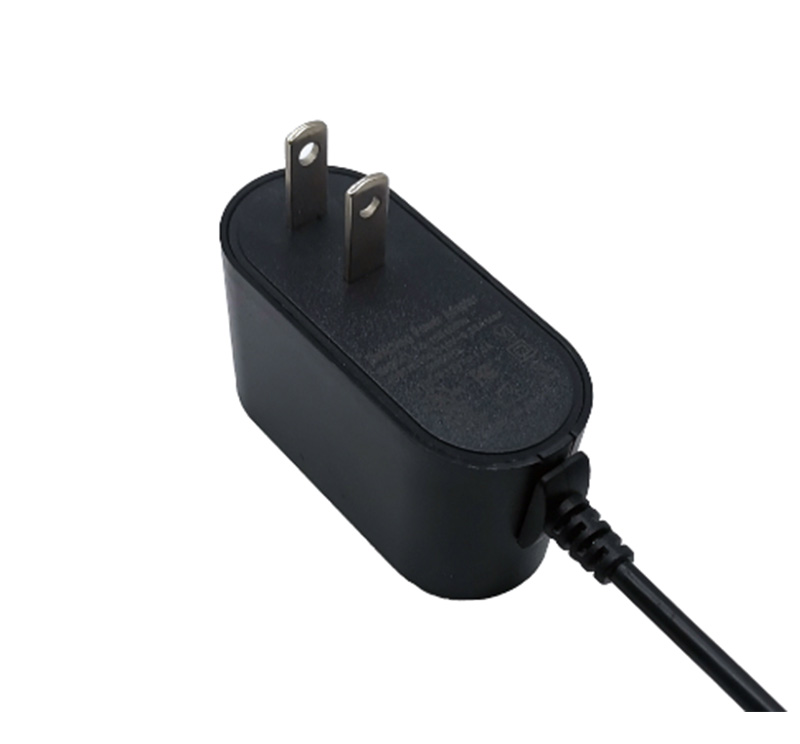

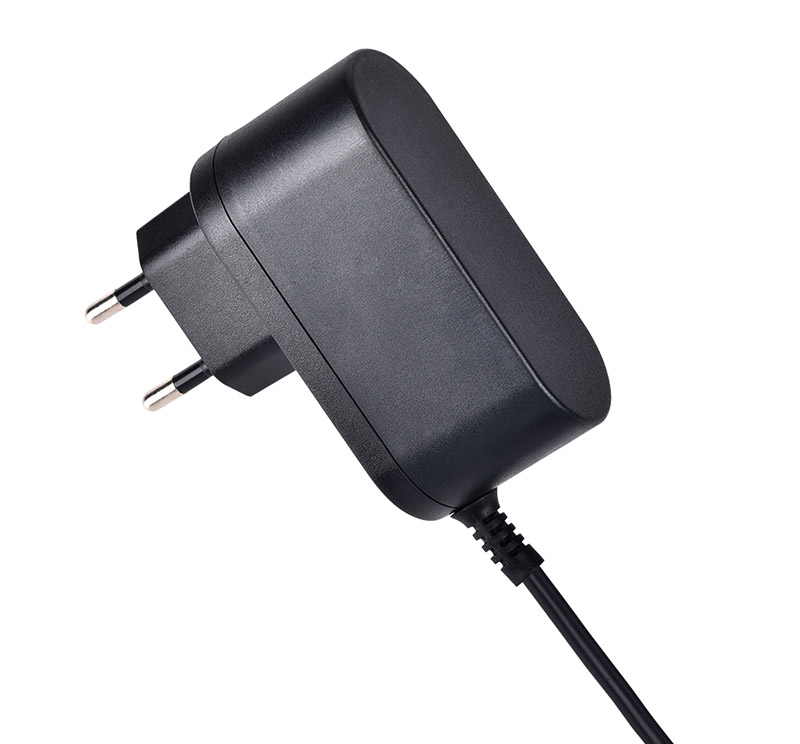

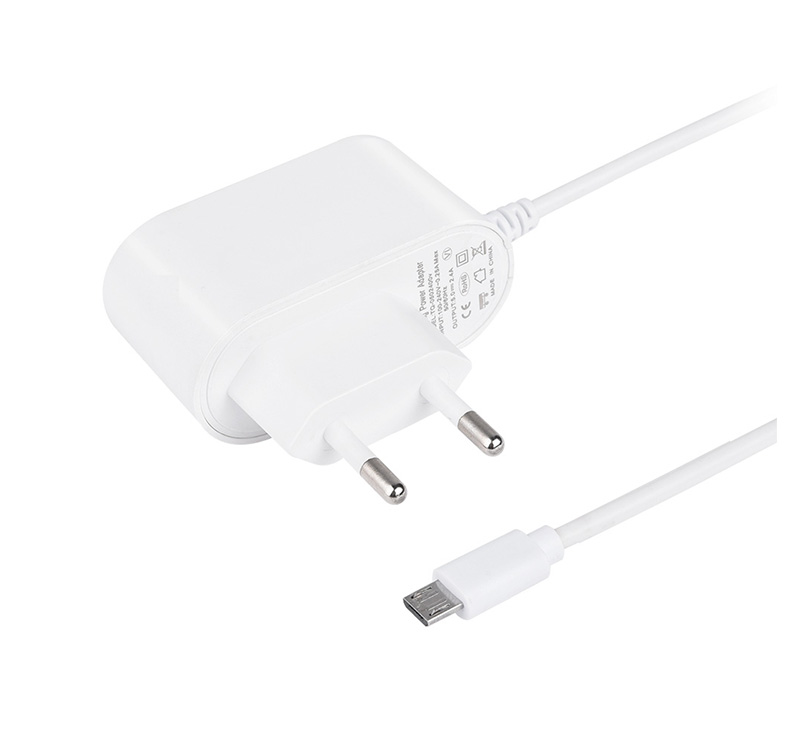

5v 1a power adapter
  • 5v 1a power adapter
  • 5v 0.5a power adapter
  • 5v 1amp power adapter

5v 0.5a 1a power adapter

    ■   Connector: 2.1/5.5mm Plug ( optional )

    ■   Input: AC100 ~ 240V, 50/60Hz, 1A max

    ■   Output: DC5V, 1000mA

    ■   Dimensions: 61.5 (L) x 26.8 (W)x 34.3 (H)  mm

    ■   UL CE FCC RCM TUV CB  Listed , Wire Length: 5 Ft

    ■    3 years warranty


Inquire Now Next Product
  • Description
body size61.5*26.8*34.3mm
Input Rated Voltage86Vac～264Vac
Input Frequency Range47Hz～63Hz
Input Current0.3A(Max)
Input Inrush Current30A
Efficiency73.6% ,level VI
DC Output Voltage5v±5%
DC Output Rated Current0.5a / 1a
DC Output Power5w
Ripple and Noise≤80Mv
Turn On Delay Time≤3S (AC:110V and full load)
StandardUL/CUL FCC CE CB
USB cable length1.5m 2464 type ( optional )
DC connectorMicro 5pin ,5.5*2.1/2.5*12mm ( optional )
Dielectric Withstand VoltageA IEC320 3 pin input---output(FG)3K Vac 1 m
ProtectionOVP ,OCP,SCP,OTP
Leakage Current≤5Ma
Operating Temperature Range0℃----+55℃
Storage Temperature-20℃----+85℃
