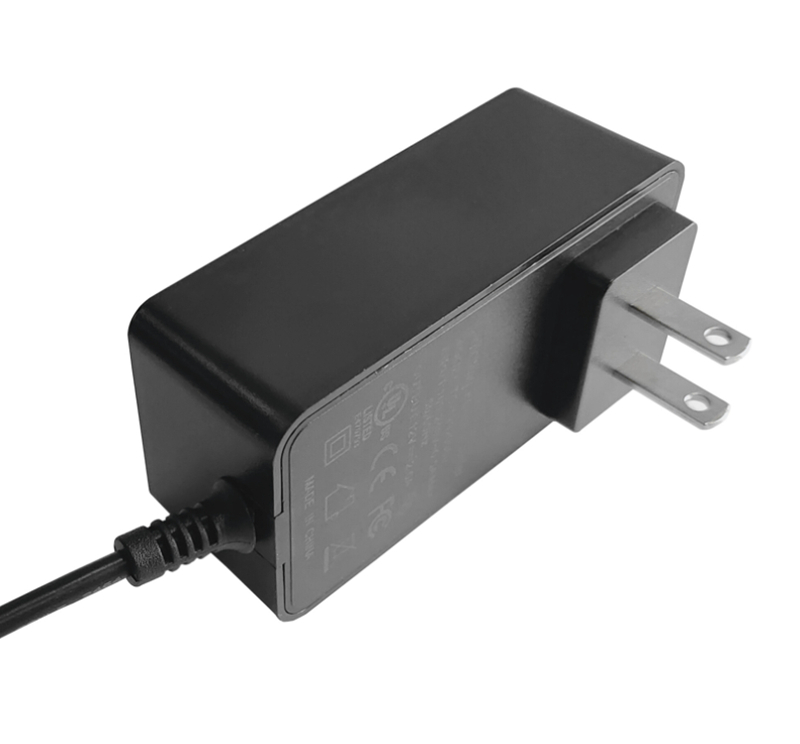

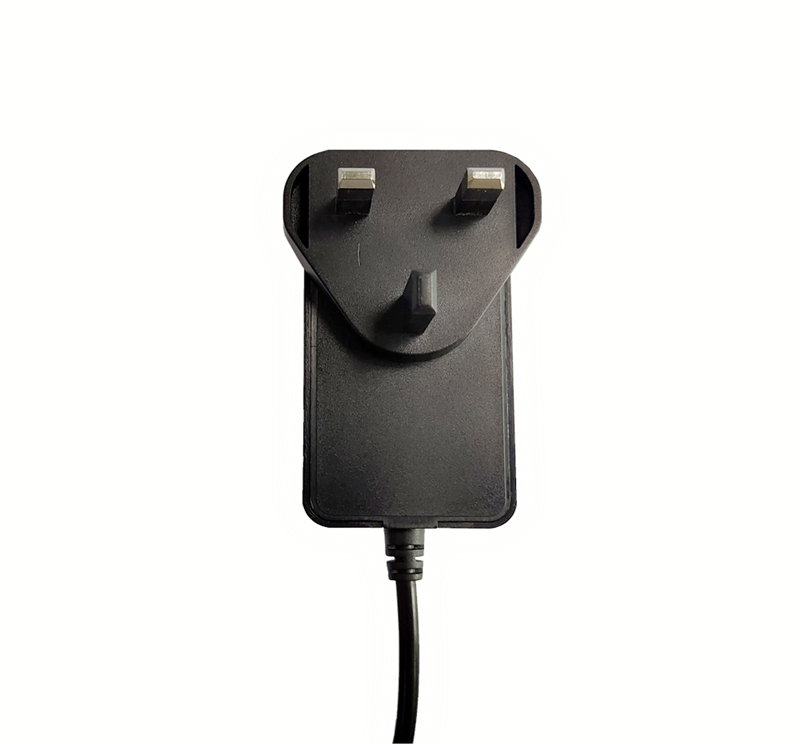

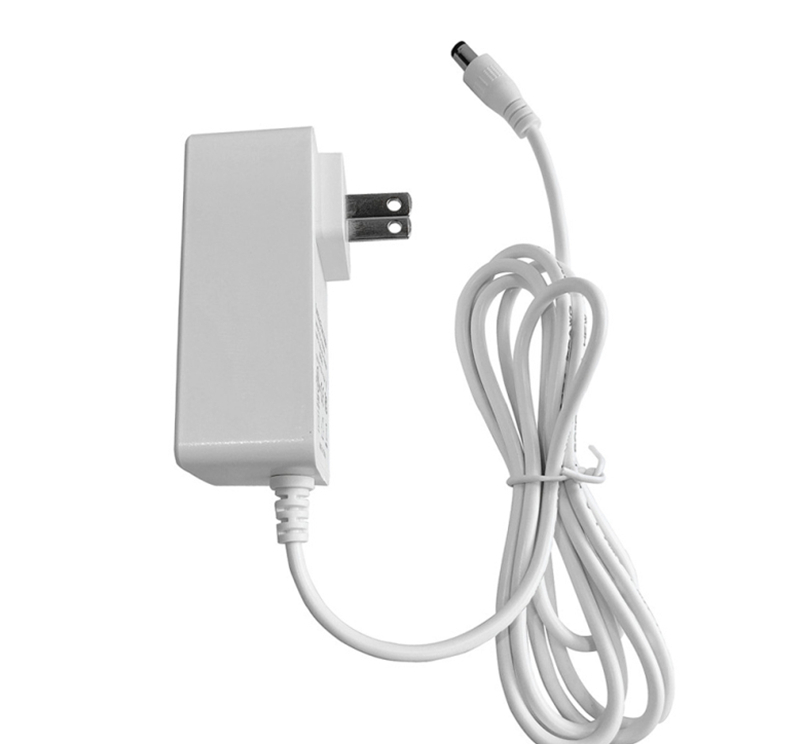

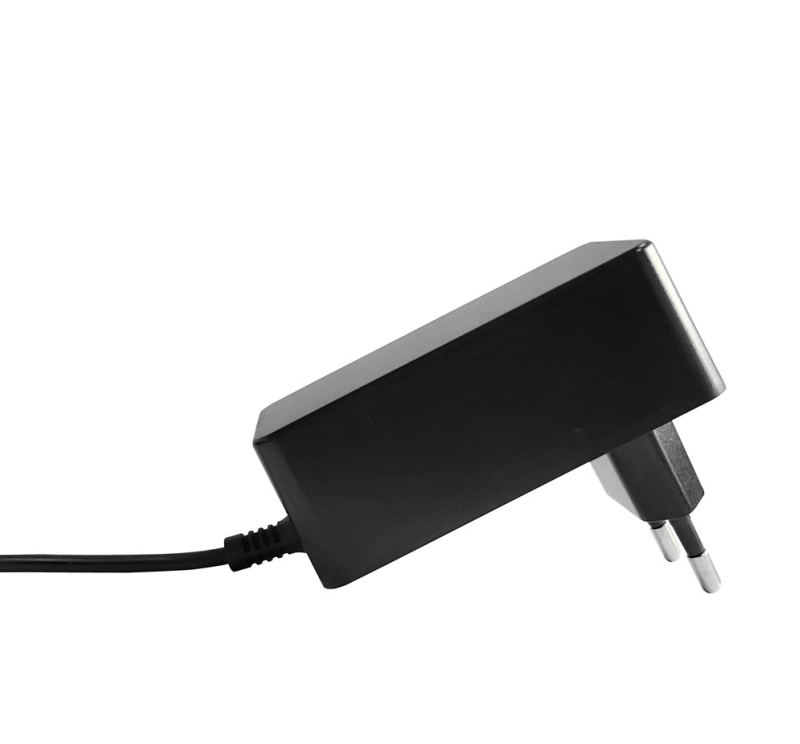

12v 2.5a 3a 3.5a power supply
100-240V AC input 50/60HZ, DC 12V 2.5Amp / 3Amp / 3.5Amp output, 42 Watt max wattage
Convert 100-240V AC to 12V DC, widely use for SMD2835 3528 5050 RGB LED strip lights, LED string, wireless routers, ADSL Cats, HUB, switch, security camera, Audio/Video power supply
Please be kindly informed that the total wattage of your device should not exceed the max wattage（42 Watt) of this adapter
1 x 12V 2.5A / 3A / 3.5A 36W / 42W power supply with 5ft power cord, 1 x 5.5/2.1 DC female barrel connector ( optional )
With 3 year warranty, and our seller support team always stand behind our products in any way, so please contact us for solution if you have any quality problems
- Description
| body size | 80*40*30mm |
| Input Rated Voltage | 86Vac～264Vac |
| Input Frequency Range | 47Hz～63Hz |
| Input Current | 0.8A(Max) |
| Input Inrush Current | 50A |
| Efficiency | 87.4%, level VI |
| DC Output Voltage | 12v± 5% |
| DC Output Rated Current | 2.5A / 3A / 3.5A |
| DC Output Power | 42w ( max ) |
| Ripple and Noise | ≤80Mv |
| Turn On Delay Time | ≤3S (AC:110V and full load) |
| Standard | UL/CUL FCC CE CB |
| DC cable length | 1.5m 2464 type ( optional ) |
| DC connector | 5.5*2.1/2.5*12mm ( optional ) |
| Dielectric Withstand Voltage | A IEC320 3 pin input---output(FG)3K Vac 1 m |
| Protection | OVP ,OCP,SCP,OTP |
| Leakage Current | ≤5Ma |
| Operating Temperature Range | 0℃----+55℃ |
| Storage Temperature | -20℃----+85℃ |
